Cr26 Liner Plates White Iron Castings Wear-resistance HRC60 for Grinding Mill

Name: Cr26 Liner Plates White Iron Castings Wearresistance HRC60 for Grinding Mill
Brand: Chen's Liner
Price: 1950 USD

China Cr26 Liner Plates White Iron Castings Wear-resistance HRC60 for Grinding Mill wholesale

Brand Name : Chen's Liner

Model Number : DF800

Place of Origin : Jiangsu,China (Mainland)

MOQ : 2 Ton/Tons

Price : USD 1950 - 4380 per ton.

Payment Terms : L/C,T/T

Supply Ability : 4500 Ton/Tons per year.

Delivery Time : It depends on quantity to be ordered.

Packaging Details : Packed by strong steel pallets.

Certification : ISO 9001:2008

Material : Cr26

Hardness : ≥HRC60

Dimension : As per drawings

Application : Grinding Mill

Service Life : More than three years

Contact Now

Cr26 Liner Plates White Iron Castings Wear-resistance HRC60 Grinding Mill

Summarization

High Cr white iron material possess a combination of superior abrasion resistance and a reasonable

degree of toughness. The high Cr castings have longer service life than the other material,such as

high Mn steel and Cr-Mo alloy steel.And now it is widely used in the working condition of high wear and low impact,such as dry grinding process,coal mills,cement mills due to its excellent performance.

Specification

Model Number	DF800
Material	High Cr Cast Iron
Hardness	More than HRC60
Dimension	As per drawing
Casting Process	Sand Casting
Heat Treatment Process	Quenching and Tempering
Impact Value	≥AK10J
Inspection	Dimensional Inspection Chemical Composition Inspection Hardness Inspection UT Test
Application	Coal Mill,Cement Mill,Mining Industry etc.
MOQ	2Tons
Delivery Time	Depends on the quantity to be ordered.
Port	Shanghai
Package	Steel Pallets
Payment Terms	T/T,L/C

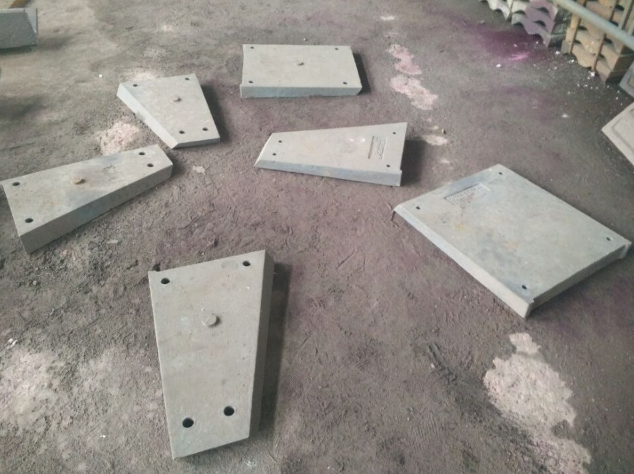

Product Photo

Cr26 Liner Plates White Iron Castings Wear-resistance HRC60 for Grinding Mill

Technical Parameters

Item	High Cr White Iron	High Cr Alloy Steel	High Mn Steel	Ni-hard Cast Iron
C	2.4-3.2	1.1-2.2	0.9-1.3	2.4-3.6
Si	0.6-1.2	0.6-1.2	≤0.8	≤0.8
Mn	0.5-1.0	0.5-1.0	11.0-18.0	≤2.0
Cr	12.0-30.0	11.0-30.0	1.5-2.5	1.5-10
S	≤0.04	≤0.04	≤0.04	≤0.15
P	≤0.06	≤0.06	≤0.06	≤0.15
Mo	0.1-3.0	0.1-3.0	≤1.0	≤0.1
Cu	0.1-1.0	0.1-1.0	-	-
Ni	0-0.3	0-0.3	-	3.3-10
Re	-	-	-	-
Equivalent Specification	GB/T8263-1999 AS2027 Cr27 AS2027 CrMo 15/3 AS2027 CrMo 20/2/1 ASTM A532 Class Ⅲ Type A 25%Cr ASTM A532 Class Ⅱ Type B 15%Cr-Mo BS 4844 3E DIN1695 NFA32401		GB/T5680-1998 DL/T 681-1999 JIS G 5153-1999 ASTM A128 DIN GX120Mn12 AFNORZ120Mn12	GB/T8263-1999 AS2027/Ni-Cr1-550 AS2027/Ni-Cr2-500 AS2027/Ni-Cr4-500 AS2027/Ni-Cr4-600 AS2027/Ni-Cr4-630 ASTM A532 1-A,B,C,D ASTM A532 2-A,B,C,D,E ASTM A532 3-A
Material Type	Martensite Matrix		Austenitic Mn Steel	-
Hardness	HRC≥56		HB≤300	HRC≥56
Impact Value	AK≥4J		AK≥80J	-

Company Introduction

Cr26 Liner Plates White Iron Castings Wear-resistance HRC60 for Grinding Mill

Inspection Facilities

Cr26 Liner Plates White Iron Castings Wear-resistance HRC60 for Grinding Mill
