Cr-Mo Alloy Steel Sand Castings Wear-resistant Castings for Mine Mill

Name: CrMo Alloy Steel Sand Castings Wearresistant Castings for Mine Mill
Brand: Chen's Liner
Price: 1 USD

Place of Origin : Jiangsu, China (Mainland)

Brand Name : Chen's Liner

Model Number : DF079

Price : Discuss in email

MOQ : 5 Ton/Tons

Packaging Details : Packed in strong steel pallets; The load of each pallet is less than 2500kg; The castings will be lo

Delivery Time : It depends on quantity to be ordered.

Payment Terms : L/C,T/T

Supply Ability : 4500 Ton/Tons per Year

Certification : ISO 9001:2008

Application : Mine mill

Material : Steel

Dimensions : As per drawings

Material Grade : AS 2074 L/2B

Hardness : HRC33~42 (HB310~390)

Microstructure : Predominantly pearlite

Dimensional Checking & Gauging : 100% check

Surface Finish : Visual inspection after shot blasting

Contact Now

Cr-Mo Alloy Steel Sand Castings Wear-resistant Castings for Mine Mill

Product Description

Specification

1. Hardness HRC33~42

2. Impact Value : More than AK60J

3. Material:Alloy Steel.

4. Dimensions: As per drawing.

Product Photo

Technical Parameters

Item	Cr-Mo Alloy Steel Ⅰ	Cr-Mo Alloy Steel Ⅱ	Cr-Mo Alloy Steel Ⅲ
C	0.3-0.5	0.65-0.90	0.4-0.9
Si	0.15-1.20	≤0.75	0.7-1.2
Mn	0.4-1.2	0.5-1.2	0.6-1.0
Cr	1.7-2.5	1.5-2.5	4.0-7.0
S	≤0.04	≤0.06	≤0.04
P	≤0.04	≤0.06	≤0.06
Mo	≤0.5	≤0.5	≤0.15
Cu	0.1-0.6	≤0.25	0.2-0.4
Ni	≤0.5	≤0.3	0-0.3
Re	≤0.02	≤0.02	≤0.02
Equivalent Specification	DL/T 681-1999 GB/T26651-2011	AS2074L2B Mod	DL/T 681-1999
Material Type	Martensite Steel	Martensite or Pearlitic Cr Mo Steel	Martensite Steel
Hardness	HRC≥48	HB470&HB321-370	HRC≥50
Impact Value	AK≥40J	-	AK≥10J

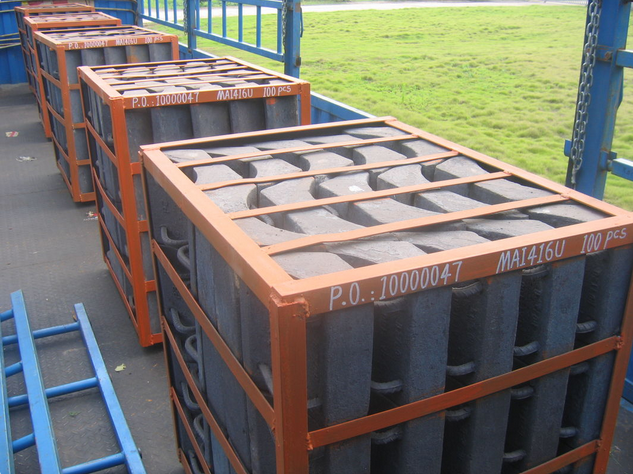

Packaging & Shipping

Package:Packed by steel pallets.

Delivery:It depends on the quantity to be ordered.

Company Information

About us

We are a Chinese specialized manufacturer of wear, heat and corrosion-resistant castings. Our main

products are ball mill liners, grinding media and wear parts for crushers.

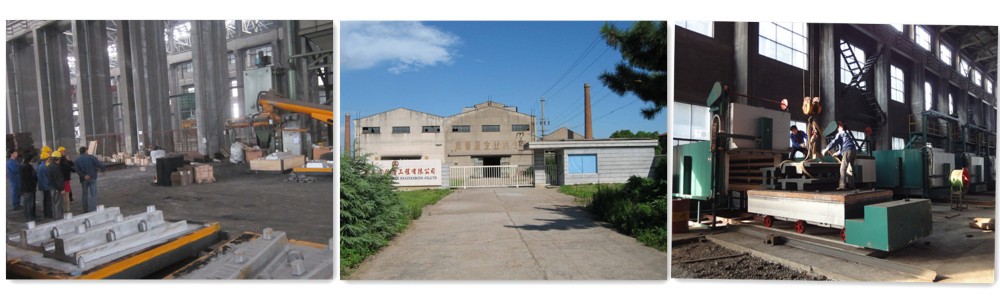

For the foundry, the area is about 30,000 square meters. The capacity of our new foundry is 30,000MT/year

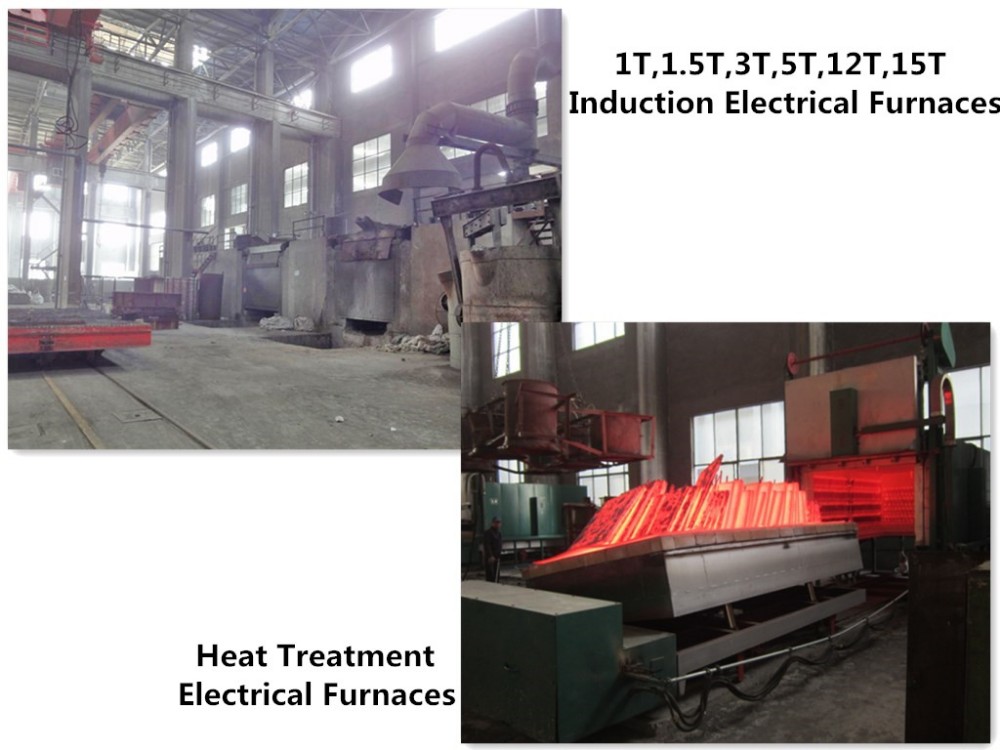

and the single piece is from 15kg to 20tons. The capacity of Mid-frequency induction electric furnaces are

15tons, 12tons, 5tons, 2tons, 1.5tons and 1.2tons. And we have 10 sets of heat-treatment electrical furnaces

with capacity of 30 tons, 10 tons,3 tons.

Our company is a Chinese specialized manufacturer of alloy steel castings.We can produce alloy steel castings

as per the drawings of customers.Now we have been the regular suppliers of mill liners for Metso;Connect,

Australia;DuoBaoShan Coal Mill.
